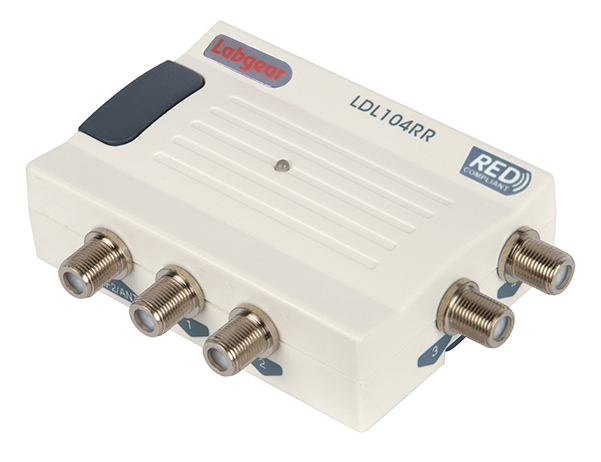

LDL104RR – Receiver Powered DigiLink Amplifiers
Compact units to extend viewing and control to 2 or 4 extra rooms.
|
Specifications |
LDL104R |
| Number of inputs | 1 |
| Number of outputs | 4 |
| Frequency range | 87-790MHz |
| Gain | 14dB |
| Noise Figure | Typ. <3dB |
| Max output level (IMA3 -60dB) | 92dBμv |
| Isolation between outlets | 10dB |
| Return path range | 5-50MHz |
| Return path gain | 6dB |
| Power for DigiLink eyes | 9V 15mA short circuit protected |
| RED, EMC and LVD | Compliant |
| Power required | 9V DC via input from RF2 |
