Model

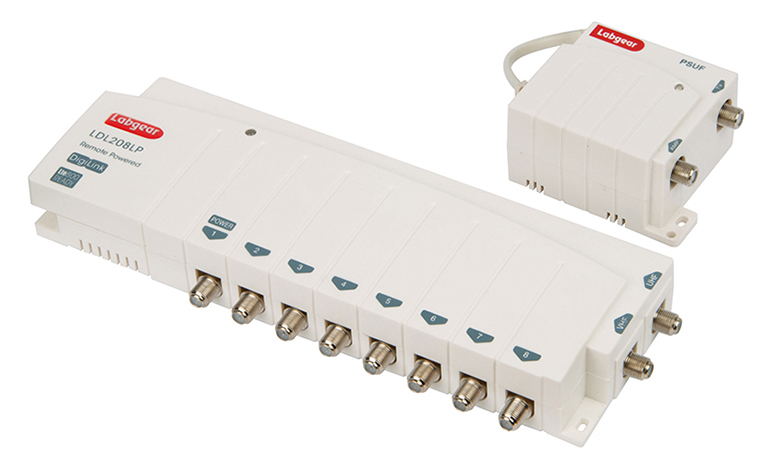

LDL208LP

No of inputs

2

No of outputs

8

Return path Frequency range

3-10MHz

Return path gain

-4dB

Frequency range

UHF: 470-790MHz   FM/DAB: 88-230MHz

UHF/FM/DAB gain per port

8dB

Max output level (IMA3-60dB).EN50083-5

＞76dB μ V

Noise figure

＜4dB

All ports IR enable

9V 15mA short circuit protect

Tetra filters

Rejection ＞20dB@380-410MHz and @950MHz

Power supply

PSUF

DC output

12VDC at 140mA max.

Output voltage

±5%

Power requirement

230V-50Hz at ＜ 3W

Signal insertion loss

0.5dB
