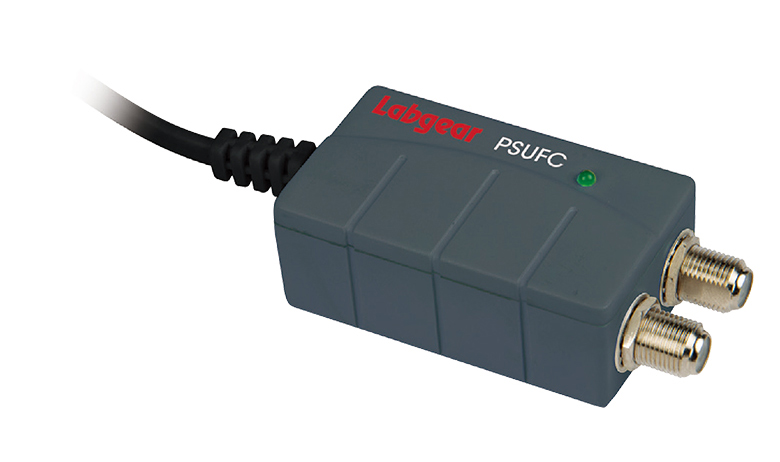

The PSUFC is a 12VDC regulated power supply ideal for powering any masthead amplifier, or a number of masthead amplifiers in cascade,
or other line powered amplifiers providing the total current demand is not more than 300mA.
The power supply complies with the ErP (Energy Related Products) Directive. This means that when there is no load the power used is less than 0.3W and the energy efficiency in use complies with the directive
Product |
PSUFC |
DC output |
12VDC - Voltage tolerance 5% - Current 300mA |
Connector type |
Type-F (female) IEC60169-24 |
Signal frequency range |
5-1000MHz |
Signal insertion loss |
0.5dB |
Power requirement under load |
230V~50Hz max. 5W |
Power requirement under no load |
230V~50Hz at <0.3W |
Power indicator |
Green LED |
Operating Temperature: |
0…40ºC |
Dimensions |
60.5(L) x 35.5(W) x 24.7(H) mm |
