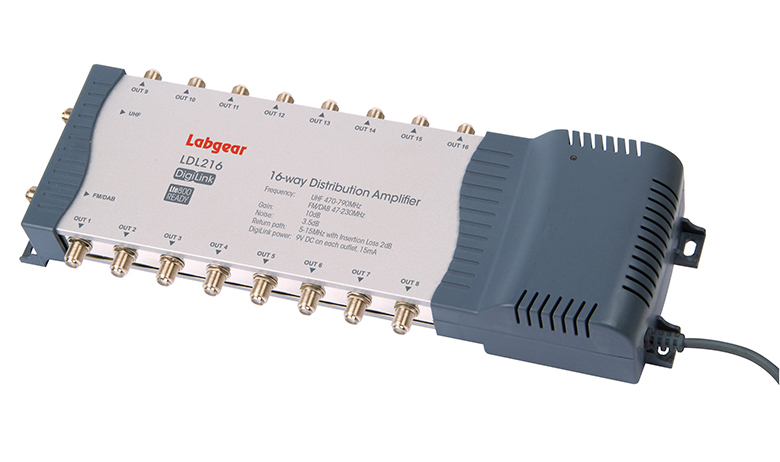

LDL216R – Larger DigiLink Amplifiers
|
Specifications |
LDL216R |
| Number of inputs | 2 |
| Number of outputs | 16 |
| Frequency range | 87-230 & 470-790MHz |
| Gain | 8dB |
| Noise Figure | Typ. <4dB |
| Max output level (IMA3 -60dB) | 84dBμv |
| Isolation between outlets | 22dB |
| Return path range | 5-30MHz |
| Return path gain | 6dB |
| Power for DigiLink eyes | 9V 15mA short circuit protected |
| RED, EMC and LVD | Compliant |
| Power required | 220-240V~50/60hz |
