- Return path allows channel changes in extra rooms with digilink eye
- Can be used as standard distribution amplifiers
- Mains powered units for extra 4, 6 or 8 rooms
- Dual input for TV and radio signals
- 4G filtering to reduce interference to TV signal
Parameters

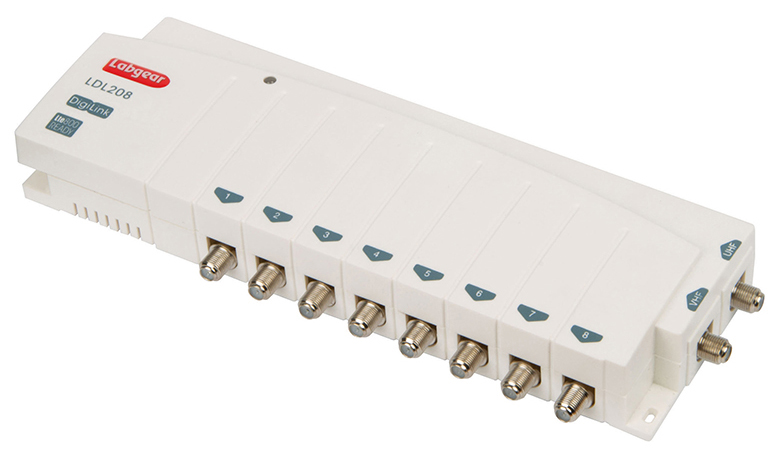

Model: LDL208
Inputs: 2
Outpust: 8
Frequency
range: VHF 47-230MHz UHF 470-790MHz
Gain
per port: 10dB
Noise
Figure: ＜3B
Output
level: 84dBμV
Impedance:
75Ω
Isolation:
20dB
Power for IR: 9V 15mA short circuit protected
Built-in
power supply: 220-240V ~50mA at ＜3W
